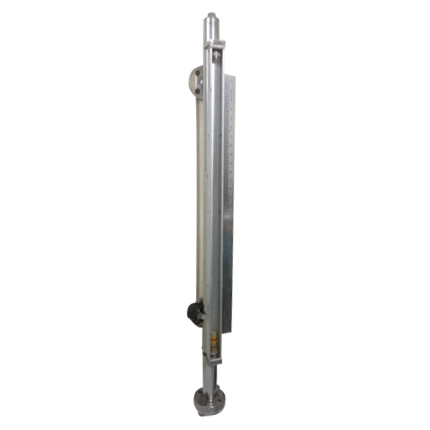

The use of tubular level gauge where chemically aggressive, pollutant to environment, noxious or Poisonous, inflammable or explosive liquid and where leakage to atmosphere is not desirable.
Features: Sealed seamless stainless steel chambers for optimum strength or synthetic polymer Chamber for corrosion resistance float fitted with sensitive light weight system involving a permanent alnico cylindrical magnet which oriented towards small float in display irrespective of the float moving up and down or rotate on its axis.
Display unit consist of Extruded Aluminum which can be assembled to any length and mounted on the chamber to suit the best visible position. Display consists of Aluminum extrusion section. In the section, Sealed Acrylic tube filled with oily liquid and a small colored float which goes up and down as the liquid in the tank rises or decreases. In the chamber there is a steel float. The both floats get magnetically locked in their positions irrespective of accidental disturbance or vibrations. Steel floats of reinforced stainless steel / Titanium or corrosion resistant plastic are provided. Impact resistance springs at top and bottom of chamber prevent accidental damage to float. Vent & Drain plugs are provided as standards. Different configurations are available for easy installations.
